PRODUCT NAME SPECIFICATIONS
M

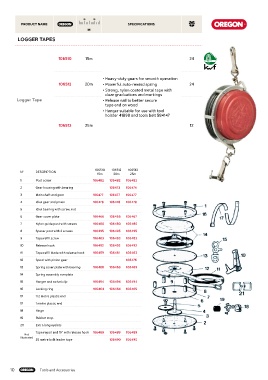

LOGGER TAPES

106510 15m 24
PR OFI

• Heavy-duty gears for smooth operation
106512 20m • Powerful auto-rewind spring 24
• Strong, nylon coated metal tape with
clear graduations and markings
Logger Tape • Release nail to better secure
tape end on wood
• Hanger suitable for use with tool
holster 41898 and tools belt 584147

106513 25m 12

106510 106512 106513
N° DESCRIPTION
15m 20m 25m
1 Post screw 106482 106482 106482
2 Gear housing with bearing 106473 106474
3 Main shaft and gear 106477 106477 106477
4 Idler gear and pinion 106478 106478 106478
5 Idler bearing with screw, nut
6 Gear cover plate 106466 106466 106467
7 Nylon guide post with screws 106480 106480 106480
8 Spacer post with 2 screws 106495 106495 106495
9 Tape refill screw 106483 106483 106483
10 Release hook 106492 106492 106492
11 Tape refill blade with release hook 106459 106461 106463

12 Spool with pinion gear 106476
13 Spring cover plate with bearing 106468 106468 106469
14 Spring assembly complete
15 Hanger and swivel clip 106494 106494 106494
16 Locking ring 106464 106464 106465
17 1/2 metre plastic end
17 1 metre plastic end
18 Hinge
19 Rubber stop
20 Extra long eyelets
Tape repair end 19” with release hook 106489 106489 106489
Not
illustrated
25 metre bulk leader tape 106490 106490
