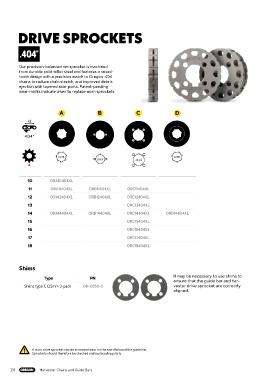

DRIVE SPROCKETS
.404”
Our precision-balanced rim sprocket is machined
from durable solid-billet steel and features a raised-
tooth design with a precision match to Oregon .404
chains to reduce chain stretch, and improved debris
ejection with tapered side-ports. Patent-pending
wear-marks indicate when to replace worn sprockets
A B C D
A B C D
.404” 25.00
22.55 22.55
20.00 25.00
10 ORA10404XL
11 ORA11404XL ORB11404XL ORC11404XL
12 ORA12404XL ORB12404XL ORC12404XL
13 ORC13404XL
14 ORA14404XL ORB14404XL ORC14404XL ORD14404XL
15 ORC15404XL
16 ORC16404XL
17 ORC17404XL
18 ORC18404XL
Shims
Type PN It may be necessary to use shims to
ensure that the guide bar and har-
Shims type C 0,5mm 3-pack OR-C050-3 vester drive sprocket are correctly
aligned.
A worn drive sprocket causes increased wear on the saw chain and the guide bar.
Sprockets should therefore be checked and replaced regularly.
