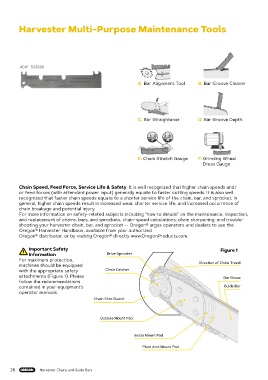

Harvester Multi-Purpose Maintenance Tools

.404” 533689

A. Bar Alignment Tool B. Bar Groove Cleaner

C. Bar Straightener D. Bar Groove Depth

E. Chain Stretch Gauge F. Grinding Wheel
Dress Gauge

Chain Speed, Feed Force, Service Life & Safety: It is well recognized that higher chain speeds and/
or feed forces (with attendant power input) generally equate to faster cutting speeds. It is also well
recognized that faster chain speeds equate to a shorter service life of the chain, bar, and sprocket. In
general, higher chain speeds result in increased wear, shorter service life, and increased occurrence of
chain breakage and potential injury.
For more information on safety-related subjects including “how to details” on the maintenance, inspection,
and replacement of chains, bars, and sprockets; chain-speed calculations; chain sharpening; and trouble-
shooting your harvester chain, bar, and sprocket -- Oregon® urges operators and dealers to use the
Oregon® Harvester Handbook, available from your authorized
Oregon® distributor, or by visiting Oregon® directly www.OregonProducts.com.

Important Safety Figure 1
Information Drive Sprocket
For maximum protection,
machines should be equipped Direction of Chain Travel
with the appropriate safety Chain Catcher
attachments (Figure 1). Please Bar Grove
follow the recommendations
contained in your equipment’s Guide Bar
operator manuals.
Chain Shot Guard

Outside Mount Pad

Inside Mount Pad

Pivot Arm Mount Pad

26 Harvester Chains and Guide Bars
