No.
43-2
Oil Tank
9
Le Housing
43-3
Rotor Assembly
Valve
10
6000Z Bearing
10-1
Sponge
43-4
44
10-2 Name Kit Part Number No. Name Kit Part Number
Oil Tank Seal Ring
Rotor
10-3 627Z Bearing 45 Oil Tank Assembly, CS1200 Oil Tank Assembly Kit 604596
11 Washer 45-1 Oil Tank Cap Hook Oil Tank Assembly Kit 604596
12 Capacitance 45-2 Oil Tank Cap Seal Ring Oil Tank Assembly Kit 604596
13 Stator Assembly 45-3 Oil Tank Cap Oil Tank Assembly Kit 604596
SPARE PARTS 13-1 Stator Screw 45-4 Oil Tank Cap Cover Oil Tank Assembly Kit 604596
13-2
Spring Washer
46
Output Sha
13-3 Washer 46-1 Self-locking Nut
13-4 Shield Plate 46-2 608Z Bearing
13-5 Stator 46-3 Output Sha Gear
13-6 Washer 46-4 Sha Sleeve
13-7 Motor Rear Support 46-5 Brake Torsional Spring
13-8 Hex Nut 46-6 Output Sha
13-9 Brush Holder 47 Bearing 6900
14 Brushes, 230V, CS1200 48 Dust Shield
15 Brush Holder Clamp 49 Self Tapping Screw 4 x 10
16 Self Tapping Screw 3 x 8 50 Brake Fixed Plate
17 Connecting Wire 51 Switch Lever
18 Motor Rear Cover 52 Brake Lever
19 Self Tapping Screw 53 Brake Lever Spring
20 Connecting Wire 54 Washer
21 Control Switch 55 Right Housing Assembly
22 Brake Spring 55-1 Right Housing Seal Ring
23 Oil Tube 55-2 Right Housing
24 Oil Connector 55-3 Tensioner Assembly Tensioner Kit 608241
25 O-rubber Ring 55-4 Tensioner Knob Tensioner Kit 608241
26 Self Tapping Screw 4 x 12 55-5 Bar Pad 608239
27 Connecting Wire 55-6 Self Tapping Screw 4 x 12
28 Micro Switch 55-7 Self Tapping Screw 4 x 15
29 Clamp 55-8 Seal Ring
30 Self Tapping Screw 3 x 8 56 Self Tapping Screw 5 x 18
31 Middle Lever 57 Self Tapping Screw 4 x 12
32 Anti Lock Button 58 Self Tapping Screw 5 x 35
33 Anti Lock Button Spring 59 Drive Sprocket, CS1200 Drive Sprocket Kit 604597
34 Switch Button 60 Sproket Drive Sprocket Kit 604597
35 Button Spring 61 E-retaining Ring Drive Sprocket Kit 604597
36 Connecting Wire 62 Guide Bar 140SDEA041 (EU)
37 Connecting Wire 160SDEA041 (NA)
38 Terminal 63 Saw Chain Q91VG052E or 91PX052E (EU)
39 Cable Clamp 91PX056G or S56 (NA)
40 Self Tapping Screw 4 x 12 64 Side Cover, CS1200 Side Cover Kit 604595
41 Cable Sleeve 64-1 End Cap Seal Ring Side Cover Kit 604595
42 Replacement Cord, EU, CS1200 64-2 Adjust End Cap Side Cover Kit 604595
Replacement Cord, UK, CS1200 64-3 Sha Sleeve Side Cover Kit 604595
43 Oil Tank Assembly 64-4 Compact Knob Side Cover Kit 604595
43-1 Oil Tube 65 Guide Bar Cover, CS1200

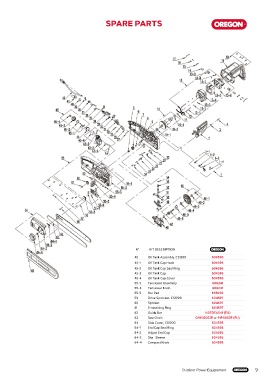

CS1200 Part Guide
N° KIT DESCRIPTION

45 Oil Tank Assembly, CS1200 604596
45-1 Oil Tank Cap Hook 604596
45-2 Oil Tank Cap Seal Ring 604596
45-3 Oil Tank Cap 604596
45-4 Oil Tank Cap Cover 604596
55-3 Tensioner Assembly 608241
55-4 Tensioner Knob 608241
55-5 Bar Pad 608239
59 Drive Sprocket, CS1200 604597
60 Sproket 604597
61 E-retaining Ring 604597
62 Guide Bar 140SDEA041 (EU)
63 Saw Chain Q91VG052E or 91PX052E (EU)
64 Side Cover, CS1200 604595
64-1 End Cap Seal Ring 604595
64-2 Adjust End Cap 604595
64-3 Sha Sleeve 604595
64-4 Compact Knob 604595

Outdoor Power Equipement 9
