No.
Self Tapping Screw
1
1
Oil Box Cap Assembly
Oil Cap Kit 573657
1
Oil Box Cap
70mm
1-1 Name Kit Part Number Quantity 46 No. Name Kit Part Number Quantity
Transparent Oil Tube
47
1
Oil Cap Kit 573657
1-2 Seal Ring Oil Cap Kit 573657 1 48 Out of the Nozzle 1
1-3 Hanger Oil Cap Kit 573657 1 49 Rubber Ring 2
2 Rubber Washer 1 50 Self Tapping Screw 2
3 Sponge Gasket 1 51 Output Shaš Assembly 1

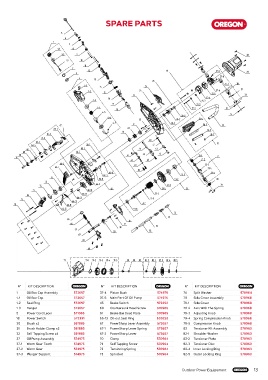

SPARE PARTS 4 4-1 Oil Box Assembly 1 1 51-1 Lock Nut 1 1
608Z Bearing
51-2
Valve
4-2 Oil Tank 1 51-3 Output Shaš Gear 1
4-3 Oil Box Joint Core Plug 1 51-4 Spindle Cover 1
4-4 Sponge 1 51-5 Torsional Spring 1
4-5 Oil Box Direct Joint 1 51-6 Adjusting Shim 2
4-6 Oil Box Seal Ring 1 51-7 Output Shaš 1
4-7 Transparent Oil Tube 170mm 51-8 Beasring 1
NA Power Cord Kit 571065 52 Copper Strip 1
5 Power Cord Leoni EU Power Cord Kit 571066 1 53 Female Terminal 1
6 Cable Sleeve 1 54 Heat Shrinkable Tube 25mm
7 Self Tapping Screw 2 55 Heat Shrinkable Tube 25mm
8 Cable Clamp 1 56 Dust Shield 1
9 Connector 2 57 Self Tapping Screw 3
10 Connecting Wire 1 58 Flange Bolts 1
11 Connecting Wire 1 59 Brake Spring 1
12 Button Spring 1 60 Countersunk Head Screw Bar Pad Kit 570965 4
13 Switch Button 1 61 Brake Bar Dead Plate Bar Pad Kit 570965 1
14 Lock Off Button 1 62 Link Switch 1
15 Button Spring 1 63 Brake Bar 1
16 Intermediate Connecting Rod 1 64 Brake Lever Spring 1
17 Self Tapping Screw 1 65 Flat Washer 1
NA Power Switch Kit 571067 66 Right Chassis Components 1
18 Power Switch EU Power Switch Kit 572391 1 66-1 Flange Bolts 1
19 Hexagonal Nut 1 66-2 Clamp 1
20 Motor Gear 1 66-3 Sponge, Mat 1
21 Motor Gear Bushing 1 66-4 Flange Bolts 2
22 Self Tapping Screw 4 66-5 Right Panel 1
23 Leš Housing 1 66-6 Self Tapping Screw 1
24 Flange Bolts 2 66-7 Clamp 1
25 Leš Panel 1 66-8 Machine Screw 1
26 Rotor Component 1 66-9 Right Housing 1
26-1 Beasring 1 66-10 Heat Insulation Washer 1
26-2 Rotor Assembly 1 66-11 Self Tapping Screw 1
26-3 Bearing 1 66-12 Countersunk Head Screw 2
27 Stator Component 1 66-13 Oil-out Seal Ring Bar Pad Seal 600252 1
27-1 Stator Screw 2 66-14 Dead Block 1
27-2 Spring Washer 2 66-15 Self Tapping Screw 2
27-3 Flat Gasket 2 67 PowerSharp Lever Assembly PowerSharp Arm Kit 570962 1
27-4 Wind Screen 1 (CS1500 only)
27-5 Stator 1 PowerSharp Arm Kit 570962
27-6 Motor Back Support 1 67-1 PowerSharp Lever Spring (CS1500 only) 1
27-7 Brush Holder 2 67-2 PowerSharp Lever PowerSharp Arm Kit 570962 1
27-8 Washer 2 (CS1500 only)
27-9 Hexagonal Nut 4 D 2 67-3
28 Self Tapping Screw 4 67-4 Stone Assembly 1
29 Motor Rear Cover 1 67-5
NA Brush Replacement Kit 581884 68 Brake Pads 1
30 Brush 2
EU Brush Replacement Kit 581885 69 Machine with Screw 1
NA Brush Replacement Kit 581884 70 Clamp Sprocket Kit 570964 1
31 Brush Holder Clamp 2
EU Brush Replacement Kit 581885 71 Self Tapping Screw Sprocket Kit 570964 1
NA Brush Replacement Kit 581884 72 Tensioning Spring Sprocket Kit 570964 1
32 Self Tapping Screw 4
EU Brush Replacement Kit 581885 73 Sprocket Sprocket Kit 570964 1
33 Connecting Wire 2 74 Split Washer Sprocket Kit 570964 1
34 Connecting Wire 2 75 Support Plate 1
35 Front Handle 1 76 Self Tapping Screw 1
36 Protective Plate Component 1 77 Self Tapping Screw 2
36-1 Self Tapping Screw 2 78 Self Tapping Screw 10
36-2 Impact Block Cover Plate 1 79 Side Cover Assembly Side Cover Kit 570968 1
36-3 Impact Plate 1 79-1 Side Cover Side Cover Kit 570968 1
36-4 Preventer Plate 1 79-2 Axis With The Spring Side Cover Kit 570968 1
37 Oil Pump Assembly Oil Pump Kit 574975 1 79-3 Adjusting Knob Side Cover Kit 570968 1
37-1 Worm Gear Tooth Oil Pump Kit 574975 1 79-4 Spring Compression Knob Side Cover Kit 570968 1
37-2 Worm Gear Oil Pump Kit 574975 1 79-5 Compression Knob Side Cover Kit 570968 1
37-3 Plunger Support Oil Pump Kit 574975 1 80 Shoulder Bolt 1
37-4 Piston Bush Oil Pump Kit 574975 1 81 Washer 1
37-5 Main Part Of Oil Pump Oil Pump Kit 574975 1 82 Tensioner Kit Assembly Tensioner Kit 570963 1
38 Oil Pump Tension Spring 1 82-1 Shoulder Washer Tensioner Kit 570963 1
N° KIT DESCRIPTION N° KIT DESCRIPTION N° KIT DESCRIPTION 39 Flange Bolts 2 82-2 Tensioner Plate Tensioner Kit 570963 1
1 Oil Box Cap Assembly 573657 37-4 Piston Bush 574975 74 Split Washer 570964 40 Brake Washer 1 82-3 Tensioner Disc Tensioner Kit 570963 1
1-1 Oil Box Cap 573657 37-5 Main Part Of Oil Pump 574975 79 Side Cover Assembly 570968 41 Self Tapping Screw 1 82-4 Inner Locking Ring Tensioner Kit 570963 1
42 Connecting Rod Clamp 1 82-5 Outer Locking Ring Tensioner Kit 570963 1
1-2 Seal Ring 573657 45 Brake Switch 572392 79-1 Side Cover 570968 43 Self Tapping Screw 1 Side Cover Replacement (CS1400) Side Cover Kit 604905
CS1500/CS1400 Part Guide
1-3 Hanger 573657 60 Countersunk Head Screw 570965 79-2 Axis With The Spring 570968 44 Connecting Wire 1 Replacement Chain (CS1500) 571039 (EU), 571037 (NA)
5 Power Cord Leoni 571066 61 Brake Bar Dead Plate 570965 79-3 Adjusting Knob 570968 45 Brake Switch NA Brake Switch Kit 571068 1 Replacement Guide Bar (CS1500) 180SDEA041
18 Power Switch 572391 66-13 Oil-out Seal Ring 600252 79-4 Spring Compression Knob 570968 EU Brake Switch Kit 572392
30 Brush x2 581885 67 PowerSharp Lever Assembly 573657 79-5 Compression Knob 570968
31 Brush Holder Clamp x2 581885 67-1 PowerSharp Lever Spring 573657 82 Tensioner Kit Assembly 570963
32 Self Tapping Screw x4 581885 67-2 PowerSharp Lever 573657 82-1 Shoulder Washer 570963
37 Oil Pump Assembly 574975 70 Clamp 570964 82-2 Tensioner Plate 570963
37-1 Worm Gear Tooth 574975 71 Self Tapping Screw 570964 82-3 Tensioner Disc 570963
37-2 Worm Gear 574975 72 Tensioning Spring 570964 82-4 Inner Locking Ring 570963
37-3 Plunger Support 574975 73 Sprocket 570964 82-5 Outer Locking Ring 570963
Outdoor Power Equipement 13
