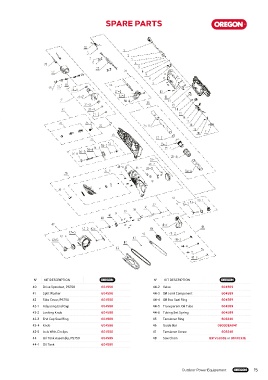

SPARE PARTS
No Name Kit Part Number No Name Kit Part Number
1 Replacement Cord, EU, PS750 33 Oil Pump Assembly
Replacement Cord, UK, PS750 33-1 Oil Tank Assembly, PS750
2 Cable Sleeve 33-2 Oil Pump Tension Spring
3 Female Terminal 34 Output Sha‡ Assembly
4 Copper Strip 34-1 Bearing
5 Heat Shrinkable Tube 34-2 Split Washer
6 Heat Shrinkable Tube 34-3 Big Gear
7 Self Tapping Screw 34-4 Woodruff Key
8 Cable Clamp 34-5 Output Sha‡
9 Self Tapping Screw 34-6 6900 Bearing
10 Self Tapping Screw 35 Le‡ Housing
11 Right the Handle 36 Right Casing Assembly
12 Le‡ the Handle 36-1 Sponge, Mat
13 Microswitch 36-2 Sponge, Mat
14 Anti Lock Button Spring 36-3 Sponge, Mat
15 Lock Off Button 36-4 Sponge, Mat
16 Switch Spring 36-5 Right Housing
17 Switch Button 36-6 Right Machine Casing Insert Assembly
18 Tie Wire Belt 36-7 Intermediate Cover Oil Joint
19 Flange Tapping Screw 37 Tubing Set Spring
20 Clamp 38 Transparent Oil Tube
21 Capacitance 39 Rubber Column
22 Inductance 40 Drive Sprocket, PS750 Drive Sprocket Kit 604590
23 Spring Connecting Line 41 Split Washer Drive Sprocket Kit 604590
24 Braces Ring Components 42 Side Cover, PS750 Side Cover Kit 604588
24-1 Braces 42-1 Adjusting End Cap Side Cover Kit 604588
24-2 Nut 42-2 Locking Knob Side Cover Kit 604588
24-3 Screw 42-3 End Cap Seal Ring Side Cover Kit 604588
24-4 Braces Ring 42-4 Knob Side Cover Kit 604588
25 Tube Assembly 42-5 Axis With Circlips Side Cover Kit 604588
25-1 Tube Assembly 44 Oil Tank Assembly, PS750 Oil Tank Kit 604589
25-2 Large Ring 44-1 Oil Tank Oil Tank Kit 604589
25-3 Fixed Pin 44-2 Valve Oil Tank Kit 604589
25-4 Pipe Joint 44-3 Oil Joint Component Oil Tank Kit 604589
25-5 Pipe Joint Sleeve Assembly 44-4 Oil Box Seal Ring Oil Tank Kit 604589
25-6 Pipe Sleeve 44-5 Transparent Oil Tube Oil Tank Kit 604589
26 Connecting Wire 44-6 Tubing Set Spring Oil Tank Kit 604589
27 Stator 43 Oil Box Cap Assy
28 Brush Shell 43-1 Oil Box Cap
29 Bush 43-2 Oil Tank Cover Sealing Ring
30 Brushes, 230V, PS750 43-3 Anti Drop Hook
31 Rotor Component 45 Tensioner Ring Tensioner Kit 608240
31-1 Bearing 46 Guide Bar 080SDEA041
31-2 The Rotor Assembly 47 Tensioner Screw Tensioner Kit 608240
31-3 Bearing Q91VG033E (EU) or
31-4 Small Gear 48 Saw Chain 91PX033E (EU)
31-5 Locking Nut 91PX033G (NA) or S33 (NA)
32 Flange Tapping Screw 49 Guide Bar Cover, PS750
PS750 Part Guide

N° KIT DESCRIPTION N° KIT DESCRIPTION
40 Drive Sprocket, PS750 604590 44-2 Valve 604589
41 Split Washer 604590 44-3 Oil Joint Component 604589
42 Side Cover, PS750 604588 44-4 Oil Box Seal Ring 604589
42-1 Adjusting End Cap 604588 44-5 Transparent Oil Tube 604589
42-2 Locking Knob 604588 44-6 Tubing Set Spring 604589
42-3 End Cap Seal Ring 604588 45 Tensioner Ring 608240
42-4 Knob 604588 46 Guide Bar 080SDEA041
42-5 Axis With Circlips 604588 47 Tensioner Screw 608240
44 Oil Tank Assembly, PS750 604589 48 Saw Chain Q91VG033E or 91PX033E
44-1 Oil Tank 604589
