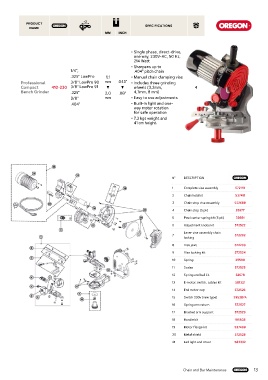

Page 131 - Κατάλογος Μηχανημάτων Κήπου & Εξαρτημάτων – Oregon

PRODUCT SPECIFICATIONS
NAME
MM INCH

• Single phase, direct-drive,
one way, 230V-AC, 50 Hz,
214 Watt
• Sharpens up to
1/4", .404" pitch chain
.325" LowPro 1,1 • Manual chain clamping vise
Professional 3/8" LowPro 90 mm .043" • Includes three grinding
Compact 410-230 3/8" LowPro 91 ▼ ▼ wheels (3,2mm, 4
Bench Grinder .325" 2,0 .08" 4,7mm, 8 mm)
3/8" mm • Easy to use adjustments
.404" • Built-in light and one-
way motor rotation
for safe operation
• 7,3 kgs weight and
41 cm height.

N° DESCRIPTION

1 Complete vise assembly 572119
2 Chain hold kit 537411
3 Chain stop vise assembly 522688
4 Chain stop (5 pk) 32677
5 Pawl center spring kit (5 pk) 32681
6 Adjustment knobs kit 572522
Lever vise assembly chain
7 572202
locking
8 Vise jaws 572203
9 Vise locking kit 572524

10 Spring 35590
11 Scales 572525
12 Spring and ball kit 32678
13 E-motor, switch, cables kit 581321
14 End motor cap 572526
15 Switch 230v (new type) 295387A
16 Spring arm return 572527
17 Bracket arm support 572529
18 Handle kit 105538
19 Motor flange kit 537409
20 Metal shield 572528
21 Led light and cover 582332

Chain and Bar Maintenance 13
