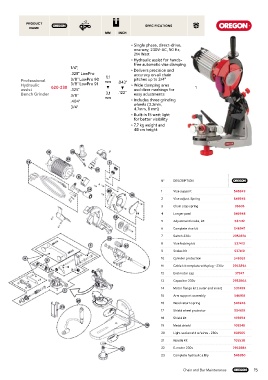

PRODUCT SPECIFICATIONS
NAME
MM INCH

• Single phase, direct-drive,
one way, 230V-AC, 50 Hz,
214 Watt
• Hydraulic assist for hands-
free automatic vise clamping
1/4", • Delivers precision and
.325" LowPro accuracy on all chain
1,1
Professional 3/8" LowPro 90 mm .043" pitches up to 3/4"
Hydraulic 620-230 3/8" LowPro 91 ▼ • Wide clamping area 1
assist .325" ▼ and clear markings for
3,1
Bench Grinder 3/8" mm .122" easy adustments
.404" • Includes three grinding
3/4" wheels (3.2mm,
4.7mm, 8 mm)
• Built-in 15 watt light
for better visibility
• 7,7 kg weight and
48 cm height

N° DESCRIPTION
1 Vise support 546949
2 Vise adjust. Spring 546945
3 Chain stop spring 35606

4 Longer pawl 546948
5 Adjustment knobs, kit 537412
6 Complete vise kit 546947
7 Switch 230v 295387A
8 Vise locking kit 537413
9 Scales kit 537410
10 Cylinder protection 546952
11 Cable kit complete with plug - 230v 295389A
12 End motor cap 37947
13 Capacitor 230v 295386A
14 Motor flange kit ( outer and inner) 537409
15 Arm support assembly 546951
16 Head return spring 546946
17 Shield wheel protector 554651

18 Shield kit 105654
19 Metal shield 109248
20 Light socket e14 w/wires - 230v 108505
21 Handle kit 105538
22 E-motor 230v 295388A
23 Complete hydraulic a.Bly 546950

Chain and Bar Maintenance 15
