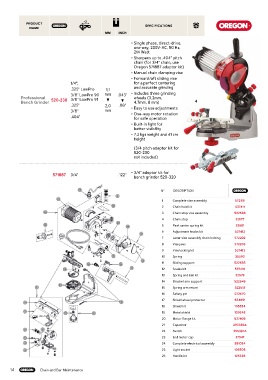

Page 132 - Κατάλογος Μηχανημάτων Κήπου & Εξαρτημάτων – Oregon

PRODUCT SPECIFICATIONS
NAME
MM INCH

• Single phase, direct-drive,
one way, 230V-AC, 50 Hz,
214 Watt
• Sharpens up to .404" pitch
chain (for 3/4" chain, use
Oregon 571887 adaptor kit)
• Manual chain clamping vise
• Forward/aft sliding vise
1/4", for a perfect centering
.325" LowPro 1,1 and accurate grinding
3/8" LowPro 90 mm .043" • Includes three grinding
Professional 520-230 3/8" LowPro 91 ▼ wheels (3,2mm,
Bench Grinder ▼ 4,7mm, 8 mm) 4
.325" 2,0 .08"
3/8" mm • Easy to use adjustments
.404" • One-way motor rotation
for safe operation
• Built-in light for
better visibility
• 7,3 kgs weight and 41 cm
height

(3/4 pitch adaptor kit for
520-230
not included)

• 3/4" adaptor kit for
571887 3/4" .122"
bench grinder 520-320

N° DESCRIPTION

1 Complete vise assembly 572119
2 Chain hold kit 537411
3 Chain stop vise assembly 522688
4 Chain stop 32677
5 Pawl center spring kit 32681
6 Adjustment knobs kit 537412
7 Lever vise assembly chain locking 572202
8 Vise jaws 572203
9 Vise locking kit 537413
10 Spring 35590
11 Sliding support 522685
12 Scales kit 537410
13 Spring and ball kit 32678
14 Bracket arm support 522649
15 Spring arm return 522651
16 Safety pin 522670
17 Shield wheel protector 554651
18 Shield kit 105654
19 Metal shield 109248
20 Motor flange kit 537409
21 Capacitor 295386A
22 Switch 295387A
23 End motor cap 37947
24 Complete electrical assembly 581054
25 Light socket 108505
26 Handle kit 105538

14 Chain and Bar Maintenance
