PRODUCT SPECIFICATIONS
NAME

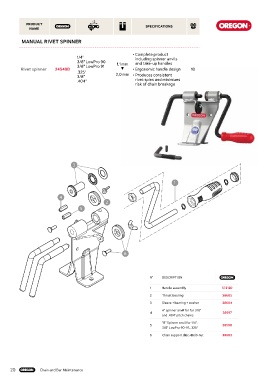

MANUAL RIVET SPINNER

• Complete product
1/4" including spinner anvils
3/8" LowPro 90 1,1 mm and take-up handles
3/8" LowPro 91
Rivet spinner 24549B ▼ • Ergonomic handle design 10
.325"
3/8" 2,0 mm • Produces consistent
.404" rivet spins and minimizes
risk of chain breakage

3

1

4
2
5

6

N° DESCRIPTION

1 Handle assembly 572120
2 Thrust bearing 38605
3 Sleeve + bearing + washer 38604
A" spinner anvil for for 3/8"
4 38597
and .404" pitch chains
"B" Spinner anvil for 1/4",
5 38598
3/8" LowPro 90-91, .325"
6 Chain support disc.+Bolt+nut 38603

20 Chain and Bar Maintenance
