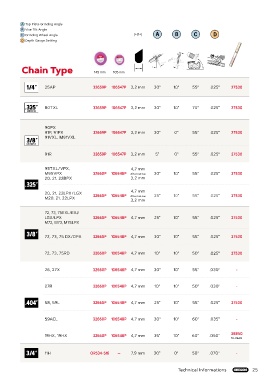

Page 143 - Κατάλογος Μηχανημάτων Κήπου & Εξαρτημάτων – Oregon

A Top Plate Grinding Angle
B Vise Tilt Angle
C Grinding Wheel Angle |←X→|
D Depth Gauge Setting

Chain Type 145 mm 105 mm

1/4” 25AP 32659P 106547P 3,2 mm 30° 10° 55° .025" 27530

.325” 80TXL 32659P 106547P 3,2 mm 30° 10° 70° .025" 27530
LOW PROFILE

90PX
91P, 91PX 32659P 106547P 3,2 mm 30° 0° 55° .025" 27530
3/8” 91VXL, M91VXL
LOW PROFILE
91R 32659P 106547P 3,2 mm 5° 0° 55° .025" 27530

95TXL/VPX, 4,7 mm
M95VPX 32660P 106548P Alternative 30° 10° 55° .025" 27530
20, 21, 22BPX 3,2 mm
.325”

20, 21, 22LPX/LGX 4,7 mm
M20, 21, 22LPX 32660P 106548P Alternative 25° 10° 55° .025" 27530
3,2 mm

72, 73, 75EXL/EXJ
LGX/LPX 32660P 106548P 4,7 mm 25° 10° 55° .025" 27530
M72, M73, M75LPX

3/8” 72, 73, 75 DX/DPX 32660P 106548P 4,7 mm 30° 10° 55° .025" 27530

72, 73, 75RD 32660P 106548P 4,7 mm 10° 10° 50° .025" 27530

26, 27X 32660P 106548P 4,7 mm 30° 10° 55° .030" -

27R 32660P 106548P 4,7 mm 10° 10° 50° .030" -

.404” 58, 59L 32660P 106548P 4,7 mm 25° 10° 55° .025" 27530

59ACL 32660P 106548P 4,7 mm 30° 10° 60° .035" -

38850
18HX, 19HX 32660P 106548P 4,7 mm 35° 10° 60° .050"
10-PACK

3/4” 11H OR534-516 — 7,9 mm 30° 0° 50° .070" -

Technical Informations 25
