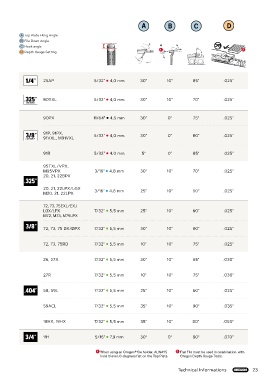

A Top Plate Filing Angle
B File Down Angle
C Hook angle
1 2
D Depth Gauge Setting

1/4” 25AP 5/32" ● 4,0 mm 30° 10° 85° .025"

.325” 80TXL 5/32" ● 4,0 mm 30° 10° 70° .025"
LOW PROFILE

90PX 11/64" ● 4,5 mm 30° 0° 75° .025"

3/8” 91P, 91PX, 5/32" ● 4,0 mm 30° 0° 80° .025"
LOW PROFILE 91VXL, M91VXL

91R 5/32" ● 4,0 mm 5° 0° 85° .025"

95TXL/VPX,
M95VPX 3/16" ● 4,8 mm 30° 10° 70° .025"
20, 21, 22BPX
.325”

20, 21, 22LPX/LGX 3/16" ● 4,8 mm 25° 10° 60° .025"
M20, 21, 22LPX

72, 73, 75EXL/EXJ
LGX/LPX 7/32" ● 5,5 mm 25° 10° 60° .025"
M72, M73, M75LPX

3/8” 72, 73, 75 DX/DPX 7/32" ● 5,5 mm 30° 10° 80° .025"

72, 73, 75RD 7/32" ● 5,5 mm 10° 10° 75° .025"

26, 27X 7/32" ● 5,5 mm 30° 10° 65° .030"

27R 7/32" ● 5,5 mm 10° 10° 75° .030"

.404” 58, 59L 7/32" ● 5,5 mm 25° 10° 60° .025"

59ACL 7/32" ● 5,5 mm 35° 10° 90° .035"

18HX, 19HX 7/32" ● 5,5 mm 35° 10° 80° .050"

3/4” 11H 5/16" ● 7,9 mm 30° 0° 80° .070"

1 When using an Oregon® file holder, ALWAYS 2 Flat File must be used in combination with
hold it level, 0-degrees flat on the Top Plate. Oregon Depth Gauge Tools.
