PRODUCT SPECIFICATIONS
NAME

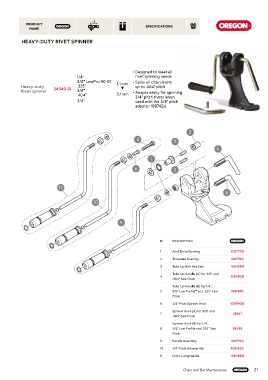

HEAVY-DUTY RIVET SPINNER
• Designed to meet all
1/4" rivet spinning needs
3/8" LowPro 90-91 1,1 mm • Spins all chain rivets
Heavy-duty 24549-SI .325" ▼ up to .404" pitch
Rivet spinner 3/8" • Adapts easily for spinning
.404" 3,1 mm 3/4" pitch rivets when
3/4" used with the 3/4" pitch
adapter 108742si
2
3 7
4
1
6 8
11
5
10
9
N° DESCRIPTION
1 Anvil Drive Bushing 108777SI
2 Threaded Bushing 108778SI
3 Take-Up Bolt Hex End 108789SI
Take-Up Handle (A) for 3/8" and
4 108780SI
.404" Saw Chain
Take-Up Handle (B) for 1/4",
5 3/8" Low Profile™ and .325" Saw 108781SI
Chain
6 3/4" Pitch Spinner Anvil 108790SI
Spinner Anvil (A) for 3/8" and
7 38597
.404" Saw Chain
Spinner Anvil (B) for 1/4",
8 3/8" Low Profile and .325" Saw 38598
Chain
9 Handle Assembly 108779SI
10 3/4" Pitch Adapter Kit 108742SI
11 Extra-Long Handle 108788SI
Chain and Bar Maintenance 21
