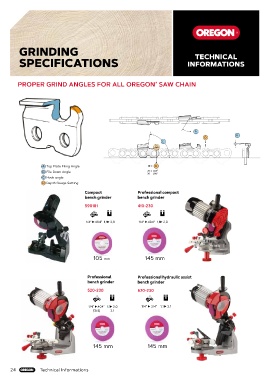

P. 142
GRINDING
TECHNICAL
SPECIFICATIONS INFORMATIONS
PROPER GRIND ANGLES FOR ALL OREGON SAW CHAIN
®
A
B
D
C
A Top Plate Filing Angle = D
B File Down Angle 25 = .025"
30 = .030"
C Hook angle
D Depth Gauge Setting
Compact Professional compact
bench grinder bench grinder
590181 410-230
1/4” ▶.404” 1,1▶ 2,0 1/4” ▶.404” 1,1▶ 2,0
105 mm 145 mm
Professional Professional hydraulic assist
bench grinder bench grinder
520-230 620-230
1/4” ▶.404” 1,1▶ 2,0 1/4” ▶ 3/4” 1,1 ▶ 3,1
(3/4) 3,1
145 mm 145 mm
24 Technical Informations
